SWAN and WAQUA simulations

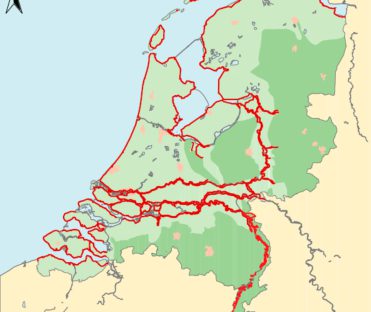

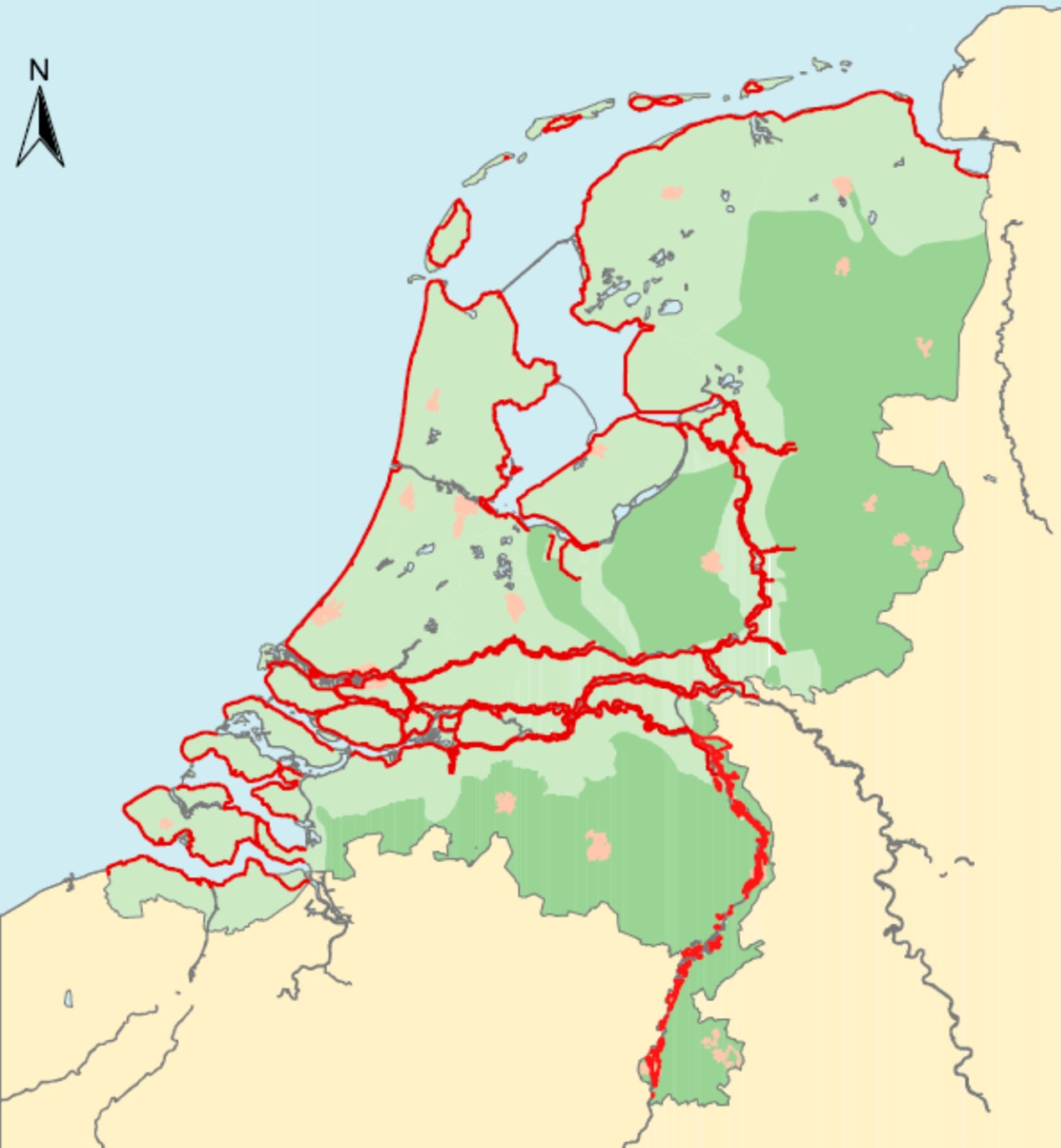

In 2011 the safety of the Dutch dunes and dikes has to be assessed regularly by the Dutch government (WTI 2011). As an input to the next round of this assessment, the Hydraulic Boundary Conditions (HBC) have been updated.

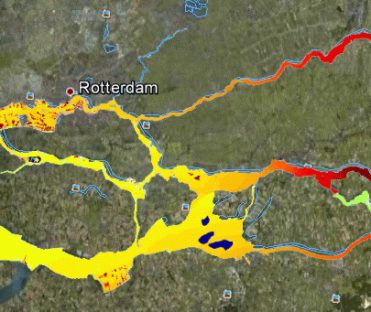

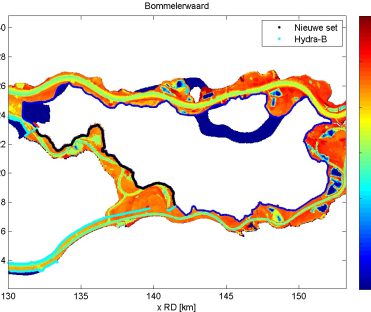

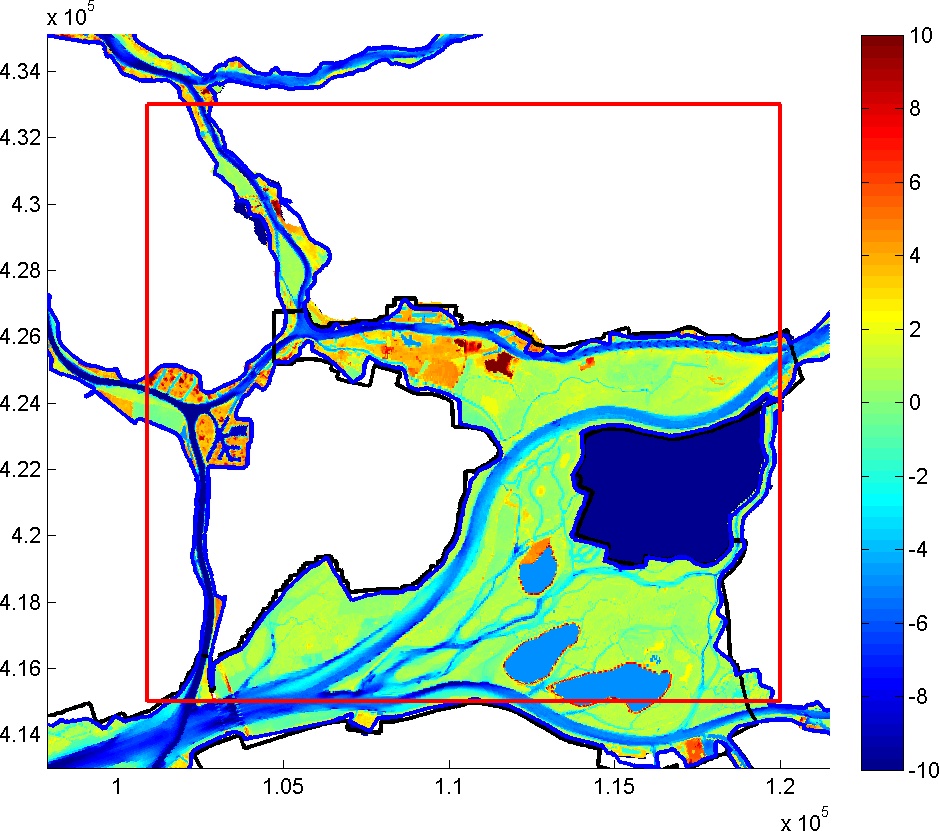

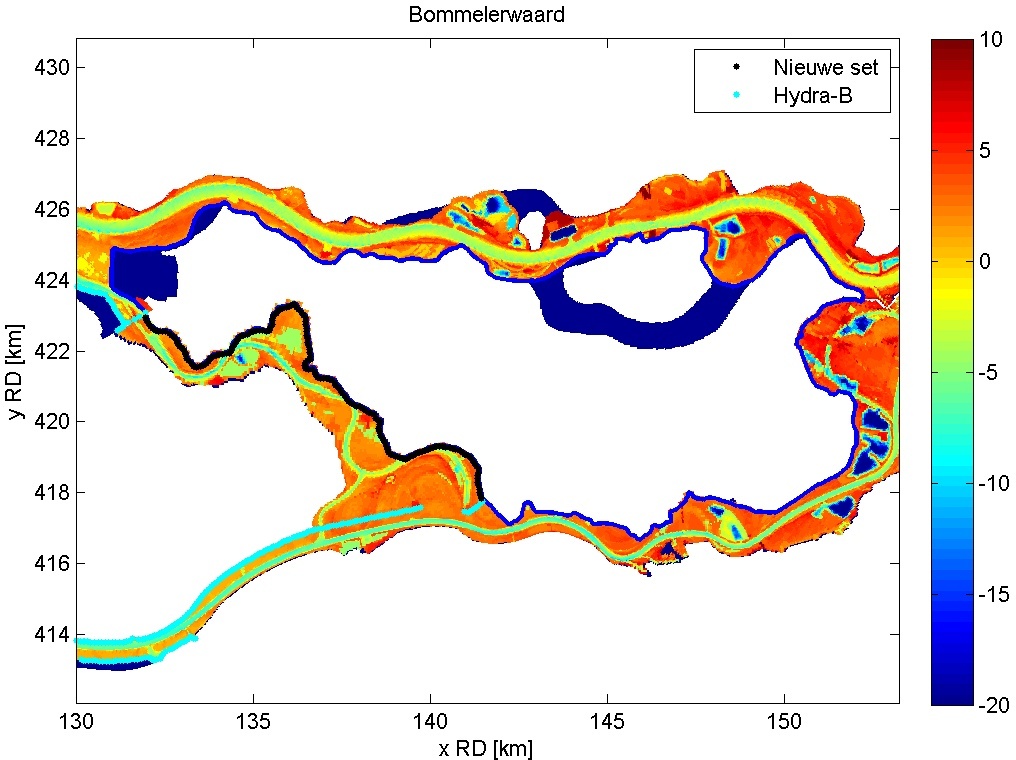

The HBC, consisting of representative wave and water level conditions are determined by means of a large number of SWAN (wave) and WAQUA (water levels) calculations. In this way a matrix is filled with a wide range of conditions that feeds a probabilistic model (Hydra) to determine the hydraulic load on the sea defenses.

The establishment of the 2011 HBC was a joint effort of Svašek Hydraulics and HKV. Over 10,000 calculations were done in 4 months of time. In the same time the results were extensively checked. So unacceptable flaws in the model were recognised and repaired ‘on the flow’.

In order to manage the large number of calculations, the pre-processing, quality control, execution and post-processing of the calculations are fully automated. Besides there is also a great need for processor capacity on the one hand, and processor flexibility on the other hand. Our privately owned high-performance Linux computing cluster is proved to be well suited to manage this high number of calculations in the given short time frame.
